Whether it’s for Network terminal or street furniture : All types of anchors,

To secure everything- definitely!

• Tellura specializes in industrial anchors which are capable of replacing a concrete foundation so now, signage and other installations can be erected cheaper & quicker than the ‘old way';
• Various sizes with diameters (26.9 to 33.7 mm) and length (from 40 cm to a meter).
• All anchors feature the Tellura tines of 6 or 8 mm. in diameter. Once deployed, the Bullhorn tine delivers exceptional resistance to extraction ensuring that it stays put -  Tellura stakes their reputation on it.

Download our documentation or contact us!

Our team is at your disposal!

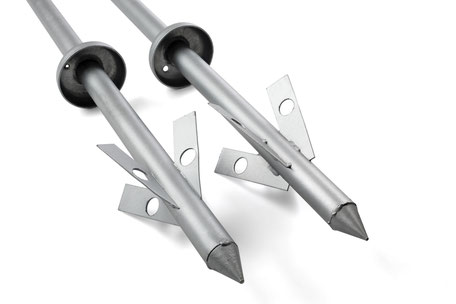

MARKER T-PICK BULLHORN VERSION

T-pick by Tellura is a system which will reliably anchor signposts or cables with unmatched installation speed.

Its simplicity of design makes the requirement for a concrete foundation an unnecessary, relic of the past.

Their sizes vary :

• Diameter 26,9 to 33,7mm
• Lenght 400mm to one meter

ANCHOR WITH TOP PLATE

Hot-galvanized anchor composed of :

• Tube diameter 26,9 or 33,7mm
• Thickness 2 or 2,6mm
• Tines diameter 6 & 8mm

Top plate :

Thickness 6mm, 2 or 4 holes for M6 bolts

3 lenghts available :

• 400mm
• 500mm
• 600mm

ANCHOR WITH RING TOP PLATE

Anchor in hot galvanized steel :

• Tube diameter 26,9 or 33,7mm
• Tines diameter 6 or 8mm
• Top plate 6mm thick

One or two stainless steel rings, diameter int. 6mm

3 lenghts available :

• 400mm
• 500mm
• 600mm

ANCHOR J11 J12

Offset anchor hot galvanized steel :

• Tube diameter 26,9mm
• Tines diameter 6mm
• Top plate 150x150mm 6mm thick

Fixing for marker:

Central hole for M12 threated rod lenght 500mm.

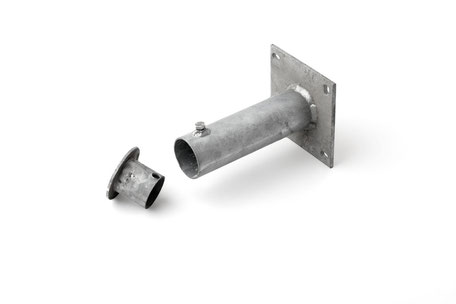

INDUSTRIAL SIGNAGE ANCHOR

Anchor set consisting of an anchor and a sleeve or housing which enables installation of all signs and street furniture.

Lenghts :

• 400mm
• 500mm
• 600mm
• 800mm

SHEATHS, POLES & MASTS

T-Pole with baseplate by Tellura offer superior breakout resistance despite design simplicity and easy of assembly.

All Tellura anchors and attachements offer uncompromising quality.

FOLD-DOWN MAST - PAINTED

Foldable with equipment support holder :

Steel tube with epoxy paint :

• Section 40x40x2mm
• Height 2m

Hot galvanized baseplate & steel tilting mechanism

PE HD UV traited socket 400x400mm

Option :

• Weighted bar 4,5Kg or 7,5Kg
• Different colors available

MASTS & ANCHORS FOR AERIAL MARKERS

For Aerial markers,

Tellura offers specifics masts and anchors with an exceptional resistance !
